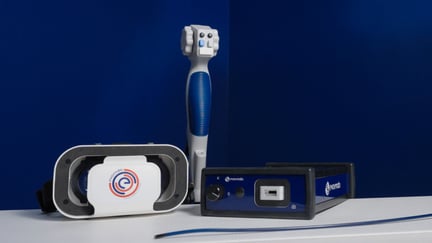

EvoEndo Endoscopy System

The EvoEndo Endoscopy System is the only FDA-cleared product designed specifically for pediatric patients of all ages, enabling both sedation-free transnasal and traditional transoral endoscopy. EvoEndo pairs a single-use, ultra-slim, flexible scope suitable for small or challenging anatomy with a portable controller and a virtual reality-based system for patient distraction.

At EvoEndo, we achieve big things through small scopes.

Product Brochure Request a demo

06 - Content Media

EvoEndo Single-Use Endoscopes

Our ultra-slim scopes, available in 85 and 110 cms, feature ChannelMax® technology that accommodates most standard pediatric accessories, making them ideal for small or challenging anatomy and a broad range of indications.

Product Specs FAQs

13 - Accordion

EvoEndo Model LE Single-Use Gastroscopes

Product Details

Enables full transnasal and transoral endoscopy
Narrow diameter fits smaller and challenging anatomy
Suitable for broad range of indication
ChannelMax® technology ccommodates most standard pediatric accessories
Multiple scope lengths for precision
Reduces risk of scope cross-contamination

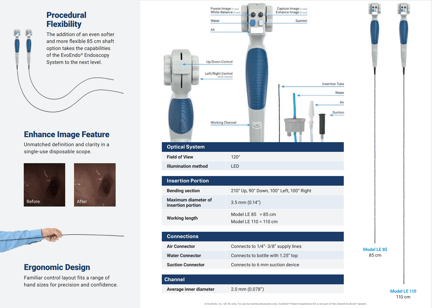

Technical Specs

Optical System

Field of view: 120° Diagonal, 87.5° Horizontal

Depth of field: 2.5 mm - 25 mm

Illumination method: LED

Connections

Air connector: Connects to 1/4”- 3/8” supply lines

Water connector: Connects to bottle with 1.25” top

Suction connector: Connects to standard 6 mm suction device

Insertion Portion

Bending section: 2.5 mm - 25 mm

Maximum diameter: 3.5 mm (0.14”)

Working length: 1.1 M (43.3”)

Channel

Average inner diameter: 2.0 mm (0.078”)

Minimum instrument channel width: 2.0 mm (0.078”)

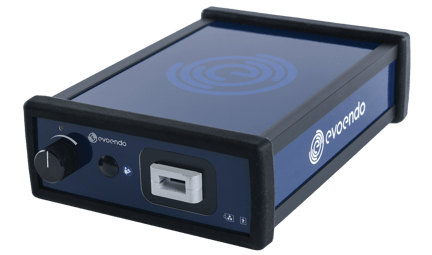

EvoEndo Controller

Product Details

Lightweight and portable at 6” x 8.5”, 2 lbs
Easy to set up – plug and play
Easy to scale to multiple sites
Integrates with some third-party endoscopy reporting software (e.g., Provation)

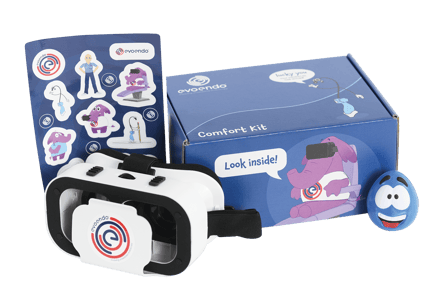

EvoEndo Patient Experience kit

Product Details

Virtual reality patient distraction via single-use VR goggles
Stress-relief squeeze ball
Curated, age-appropriate video library at evoendo.com/youtube

Comprehensive Training, Education, and Support

What We Provide

Our account management and clinical teams will be with you step by step as you integrate this technology into your practice.

Clinical Support
Business Planning
Implementation Planning
Program Launch and Expansion
Tools and Resources

102 - Cards Slider

Ultra-Slim Scopes

Narrow 3.5 mm outer diameter for smaller nasal or challenging anatomy and a 2.0 mm working channel accomodates standard instrumentation.

Single-Use Scopes

Single-use scopes minimize cross-contamination risk and eliminate required staff time and costs for reprocessing and repair of reusable scopes.

Advanced Imaging

Enhanced image definition offers clear, high-quality visuals in real-time, improving diagnostic accuracy and insights into upper GI anatomy.

Multiple Lengths

Featuring ChannelMax® technology in 110 cm and 85 cm lengths, providing flexibility and precision for each procedure, including full EGDs.

Ergonomic Design

Familiar control layout fits various hand sizes, offering operator precision and comfort while reducing fatigue during procedures.

Portability

Easy to set up and low start-up costs, enabling sedation-free TNE at the site of service, and maximizing workflow efficiency.

TNEase Scoring System

System to enable a TNE team to subjectively and objectively rate how well a patient tolerates a sedation-free TNE procedure.
